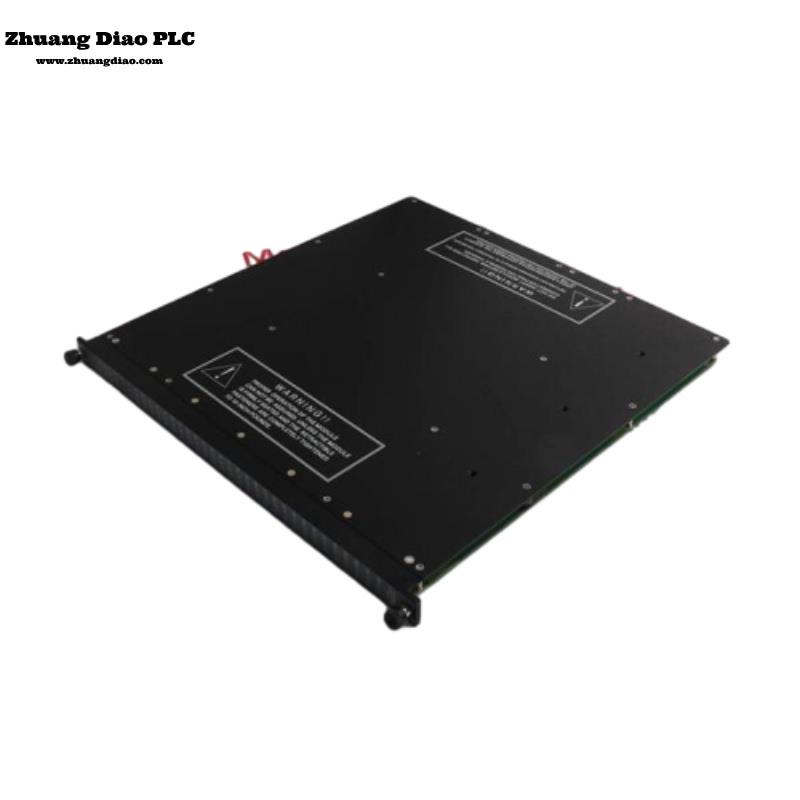

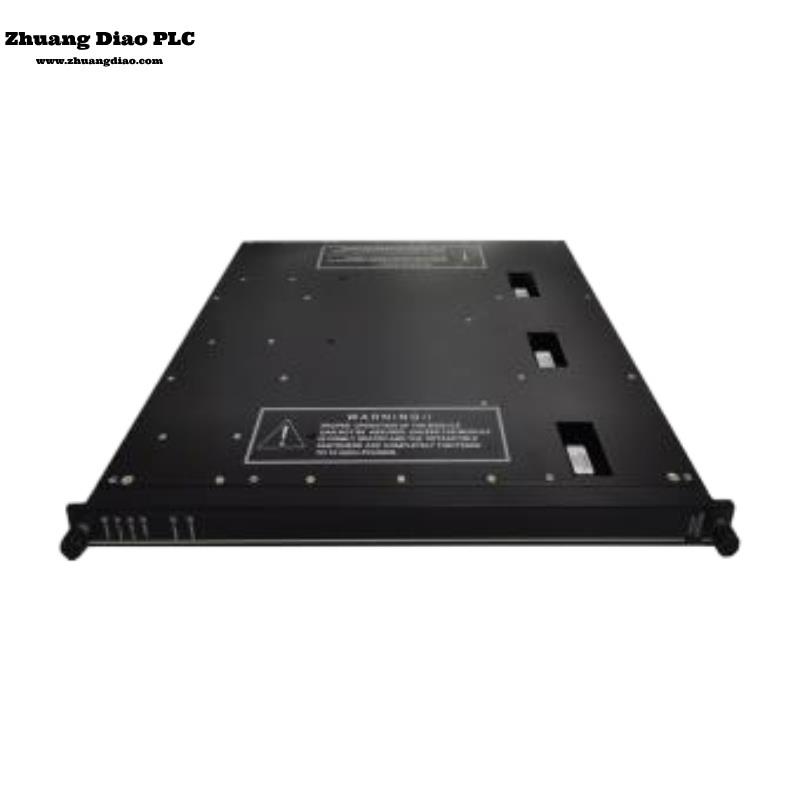

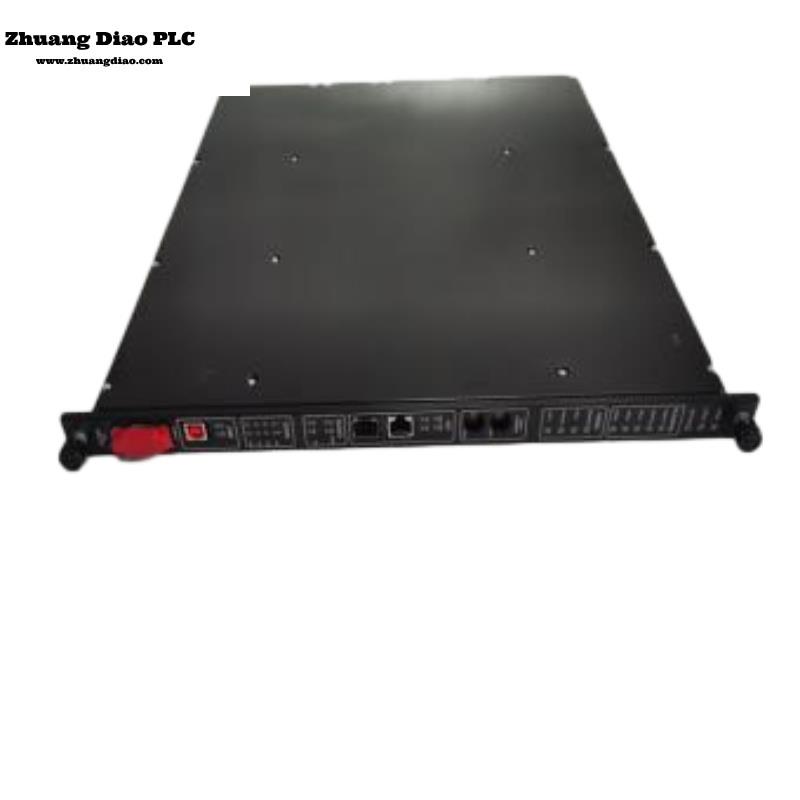

Triconex 3564 Digital Input Module

Product Description

64-Point Digital Input Modules

Each 64-point Digital Input (DI) module has three isolated channels which independently process all data input to the module. A microprocessor on each channel scans each input point, compiles data and transmits it to the Main Processors on demand. Then input data is voted at the Main Proces sors just prior to processing to ensure the highest integrity. All Digital Input Modules sustain complete, ongoing diagnostics for each channel. A failure on any channel acti vates the Fault indicator which in turn activates the chassis alarm. A TMR module is guaranteed to operate prop erly in the presence of a single fault and may operate properly with certain kinds of multiple faults. All Digital Input Modules support hot- spare modules and require a separate external termination panel (ETP) with a cable interface to the Tricon backplane. Each module is mechanically keyed to prevent improper installation in a chassis.

Features Specification

Color code Dark red

Number of input points 64,

commoned Recommended input range 15–30 VDC

Maximum voltage 36 VDC

Switching level: Off to On 12 VDC typical, 15 VDC worst-case

Switching level: On to Off 8 VDC typical, 6 VDC worst-case

Typical hysteresis 4 VDC

Nominal turn-on 2 mA to 3 mA

Input impedance > 3.0 kΩ nominal

Input delay: Off to On < 2 ms

Input delay: On to Off < 2 ms

Point isolation, opto-isolated 1500 VDC minimum

Status indicator: On or Off State 1 per point

Status indicator: Module status Pass, Fault, Active,Power

Logic power < 10 watts

Nominal field power load 0.2 watts per On point, 0.5 watts @ maximum field voltage

Leakage current to chassis @ 60 Hz Not applicable

Input toggle rates1: Maximum Every 100 ms

Input toggle rates1: Minimum, On state Not required

Input toggle rates1: Minimum, Off state Not required

On glitch of Off point2: Duration < 2 ms maximum

On glitch of Off point2: Voltage < VIN

On glitch of Off point2: Duty cycle 50%, typical

Impedance < 10 Ω
