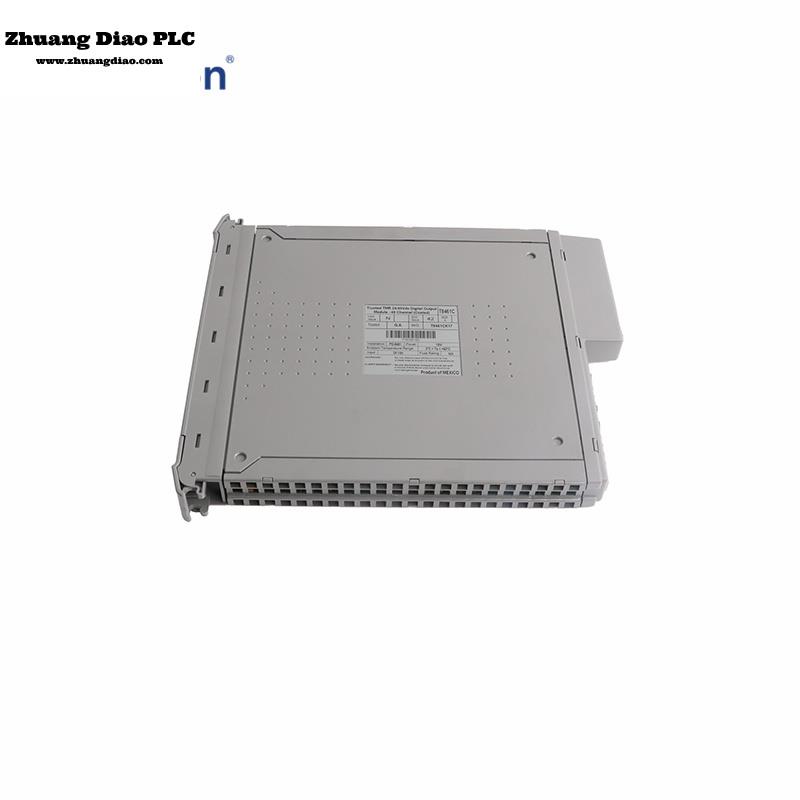

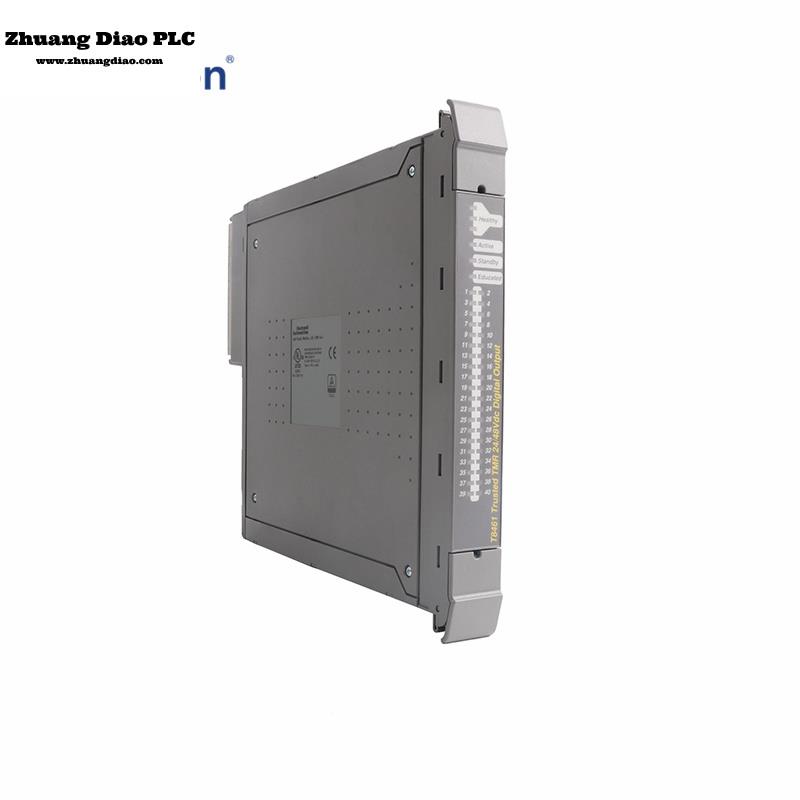

The ICS TRIPLEX T8461C Trusted TMR 24/48V DC Digital Output Module is designed for industrial applications where reliable output control is required. This module supports 24/48V DC digital outputs and is part of the Trusted TMR (Triple Modular Redundant) system, ensuring high availability and safety for critical processes.
The module offers flexible input detection for 16 field input switches, compatible with field power supplies of 24V, 48V, or 120V DC. Its measurement range is 0 to 60V DC, with a maximum voltage withstand rating of -1 to 60V DC.
For current output, the module supports 0.75A per channel, with a total output capacity of 6A per power group, making it suitable for a variety of industrial control and monitoring tasks.
|
Attribute |
Specification |
|
Manufacturer |
ICS Triplex |
|
Model |
|
|
System Supply Voltage Range |
20 to 32 Vdc |
|
Circuit Type |
Fault tolerant, fully triplicated with optional line monitoring |
|
Number of Outputs |
40 Channels |
|
Independent Power Groups |
5 groups, each with 8 outputs |
|
Operational Output/Field Voltage Range |
18 to 60 Vdc |
|
Output Off State Resistance (effective leakage) |
33 kΩ |
|
Maximum Capacitance |
Pre-release 3.5: 30-55 μF |
|
Flashing/Pulsing Current Loads |
Release 3.5 is recommended |
|
Output On State Resistance |
0.6 Ω |
Frequently Asked Questions (FAQ)：
1. What is the ICS TRIPLEX T8461C module?
The ICS TRIPLEX T8461C is a Trusted TMR (Triple Modular Redundant) 24/48V DC Digital Output module. It provides highly reliable digital output capabilities for industrial applications, ensuring safe and redundant operations in critical processes.
2. What is the input detection capability of the T8461C?
The T8461C module can detect inputs from 16 field input switches and is compatible with field power supplies of 24V, 48V, or 120V DC.
3. What is the voltage range of the T8461C?
The T8461C module has a measurement range of 0 to 60V DC and can withstand voltages from -1V to 60V DC.
